Cutting Mill SM 50

이 페이지에서 무료 견적을 요청할 수 있습니다.

요청 리스트에 포함하시고자 하는 아이템을 선택하여 주시기 바랍니다. 제품 페이지에서 항목을 선택할 수 있습니다.

요청 리스트는 웹사이트 우측 상단 코너에서 확인하실 수 있습니다.

일반 견적

필요한 제품이 무엇인지 잘 모르거나 일반 견적이 필요하십니까?

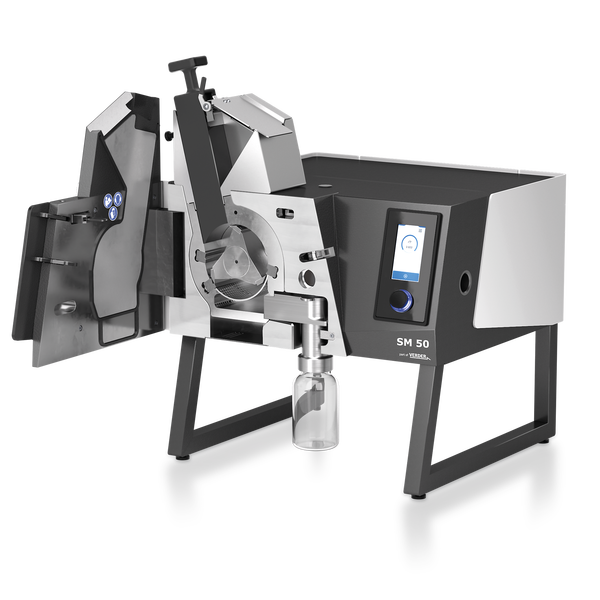

Cutting Mill SM 50

Cutting Mill SM 50 (please order milling chamber set, rotor, hopper and bottom sieve seperately)​
20.720.0001​
SM 50200-230V 50/60Hz, with frequency converter for variable speed
20.720.0003
SM 50110V 50/60Hz, with frequency converter for variable speed


Milling Chamber Sets SM 50

Consisting of milling chamber, double acting cutting bars, door insert and 500 ml glass bottle / receptacle
22.010.0003​For standard applications​: Aluminum milling chamber with stainless steel double acting cutting bars, stainless steel cyclone, aluminum door insert, and 500 ml glass bottle
22.010.0004​For corrosion resistant applications​: Stainless steel milling chamber with stainless steel double acting cutting bars, stainless steel cyclone, stainless steel door insert, and 500 ml glass bottle
22.010.0005​For grinding without heavy metal contamination​: Aluminum milling chamber with steel 1.1740 double acting cutting bars, stainless steel cyclone, aluminum door insert, and 500 ml glass bottle
22.010.0006​For grinding without cyclone: Aluminium gravitiy chamber with stainless steel double acting cutting bars​, aluminium door insert, adapter incl. stainless steel 3 l receptacle


Rotors SM 50

22.608.00413-disc rotor made of stainless steel with reversable cutting tips made of tungsten carbide​
22.608.00423-disc rotor made of steel 1.0570 with reversable cutting tips made of tungsten carbide, for grinding without heavy-metal contamination​
22.608.0039Parallel-section rotor made of stainless steel with cutting plates made of stainless steel​
22.608.0040Parallel-section rotor made of steel 1.0570 with cutting plates made of steel 1.1740, for grinding without heavy-metal contamination​


Hopper SM 50

22.785.0011​EasyInspect hopper made of stainless steel with PE plunger​


Bottom Sieves SM 50

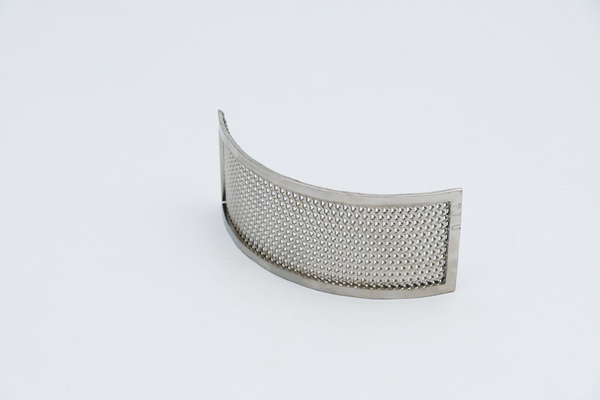

Bottom sieves made of stainless steel 1.4404

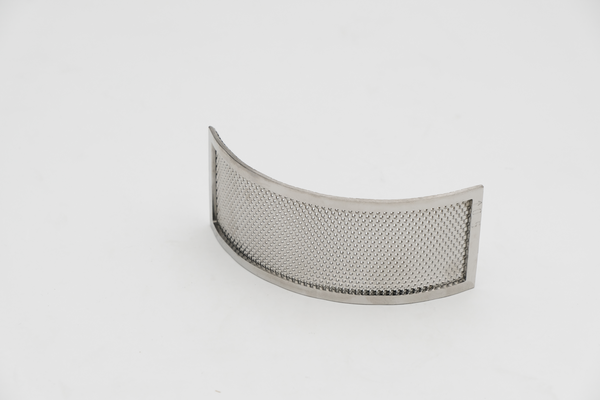

03.647.0574마름모형 공극, 0.25 mm
03.647.0575마름모형 공극, 0.5 mm
03.647.0576마름모형 공극, 0.75 mm
03.647.0577마름모형 공극, 1.00 mm

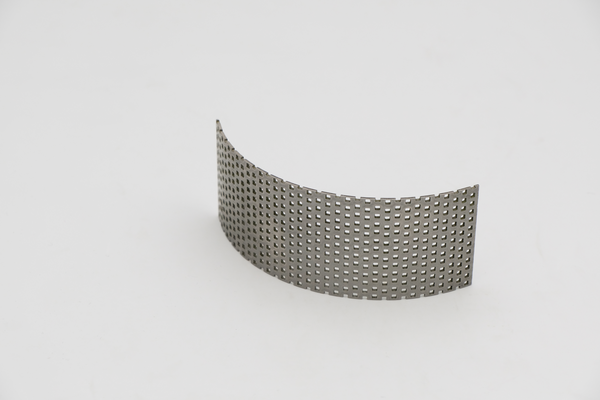

03.647.0578사각형 공극, 2.00 mm

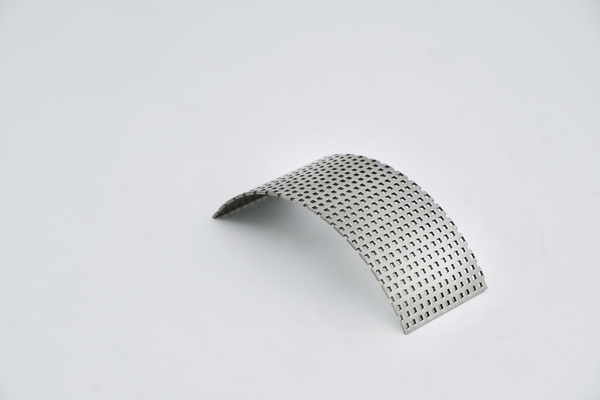

03.647.0579사각형 공극, 4.00 mm

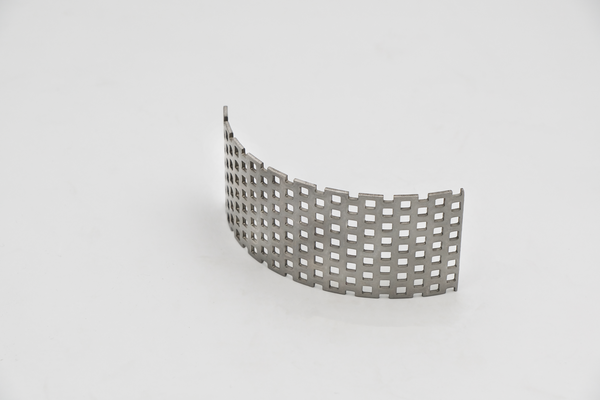

03.647.0580사각형 공극, 6.00 mm
03.647.0581사각형 공극, 8.00 mm

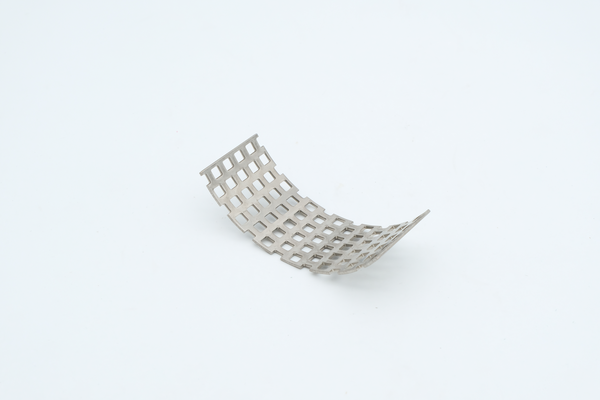

03.647.0582사각형 공극, 10.00 mm
22.647.0001Bottom sieves made of stainless steel complete set of 9 bottom sieves 0.25 - 10 mm

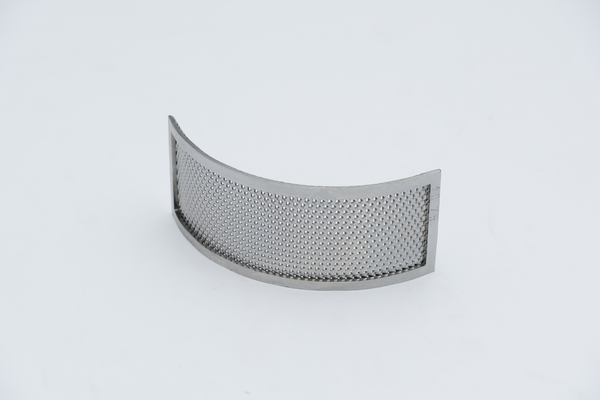

Bottom sieves made of steel 1.0353 for grinding without heavy-metal contamination​

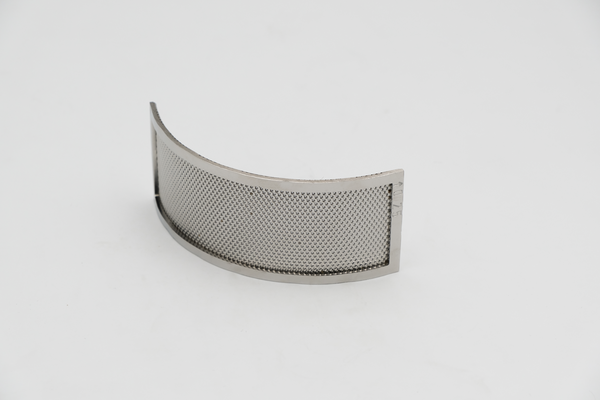

03.647.0583마름모형 공극, 0.25 mm
03.647.0584마름모형 공극, 0.5 mm
03.647.0585마름모형 공극, 0.75 mm
03.647.0586마름모형 공극, 1.00 mm
03.647.0587사각형 공극, 2.00 mm
03.647.0588사각형 공극, 4.00 mm
03.647.0589사각형 공극, 6.00 mm
03.647.0590사각형 공극, 8.00 mm
03.647.0591사각형 공극, 10.00 mm
22.647.0002Bottom sieves made of steel 1.0353 complete set of 9 bottom sieves 0.25 - 10 mm


Accessories SM 50



회수 용기

22.523.0001​Sample bottle 250 ml (10 pcs.)
22.523.0002​Sample bottle 500 ml (10 pcs.)
02.107.0493Lid for collecting receptacle cyclone 3l (only for cyclone)

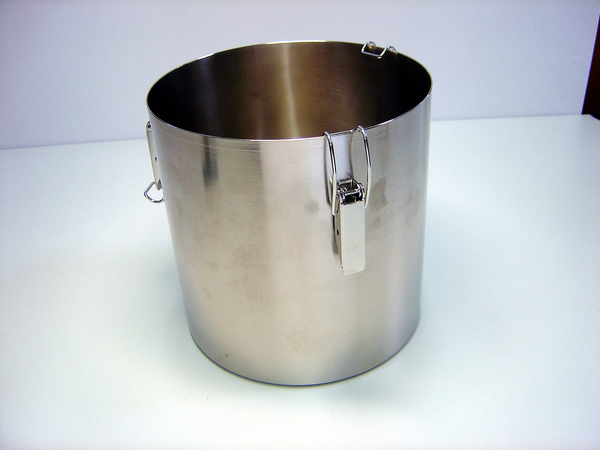

02.011.0031​Collecting receptacle 3 litres, stainless steel (for grinding with or without cyclone)
02.183.0146Adapter for collecting receptacle 3l and 5l (only for SM 50 gravity outlet)
02.011.0029Collecting receptacle 5 litres, stainless steel (only for SM 50 gravity outlet)


Milling chambers

22.010.0007​Milling chamber made of aluminium with stainless steel double acting cutting bars for standard grinding applications
22.010.0008​Milling chamber made of aluminium with steel 1.1740 double acting cutting bars for grinding without heavy metal contamination
22.010.0009​Milling chamber made of stainless steel with stainless steel double acting cutting bars for corrosion resistant applications
22.010.0010Gravitiy chamber made of aluminium with stainless steel double acting cutting bars​
22.730.​0002Door insert made of aluminium
22.730.0003Door insert made of stainless steel


Stationary cutting bars for milling chambers​

22.152.0012​Double acting cutting bars made of stainless steel (3 pcs.)
22.152.0013Double acting cutting bars made of steel 1.1740 (3 pcs.) for grinding without heavy metal contamination
22.608.0043Adjustment tool for double acting cutting bars


Accessories for rotors

05.908.0001​Reversible cutting tips made of tungsten carbide for 3-disc (10 pcs.)​
22.151.0010​Cutting plates made of stainless steel for parallel section rotor​s (3 pcs.)
22.151.0011Cutting plates made of steel 1.1740 for parallel section rotors​ (3 pcs.)


Cyclones

22.935.0040​Cyclone made of stainless steel


Additional Items

22.748.0005​Industrial vacuum cleaner for mills, 230 V, 50/ 60 Hz (other electrical versions and spare filter bags available upon request)​
03.725.0047​PE plunger for EasyInspect hopper
22.225.0002로터 교체 추출 도구
99.200.0045IQ/OQ Documentation for SM 50​
