회전 시료 분배기 PT 300

A faultless and comparable analysis is closely linked to accurate sample handling. Only a sample representative of the initial material can provide meaningful analysis results. Rotating sample dividers ensure the representativeness of a sample and thus the reproducibility of the analysis.

The rotating sample divider PT 300 is specially designed for representative, dust-free division and volume reduction of large amounts of powdered or granular bulk materials. The selection of different dividing modules determines the dividing ratio and the sample amount. The PT 300 is available in configurations for the division of either 30 l or 60 l sample material.

비디오 시청 클릭

온라인 제품 시연을 위해 일정을 예약하세요!

장점

Exact division, also of large quantities
Modular design
Variable speed 18 - 53 rpm
Extraction of 4 - 10 samples for batch processing

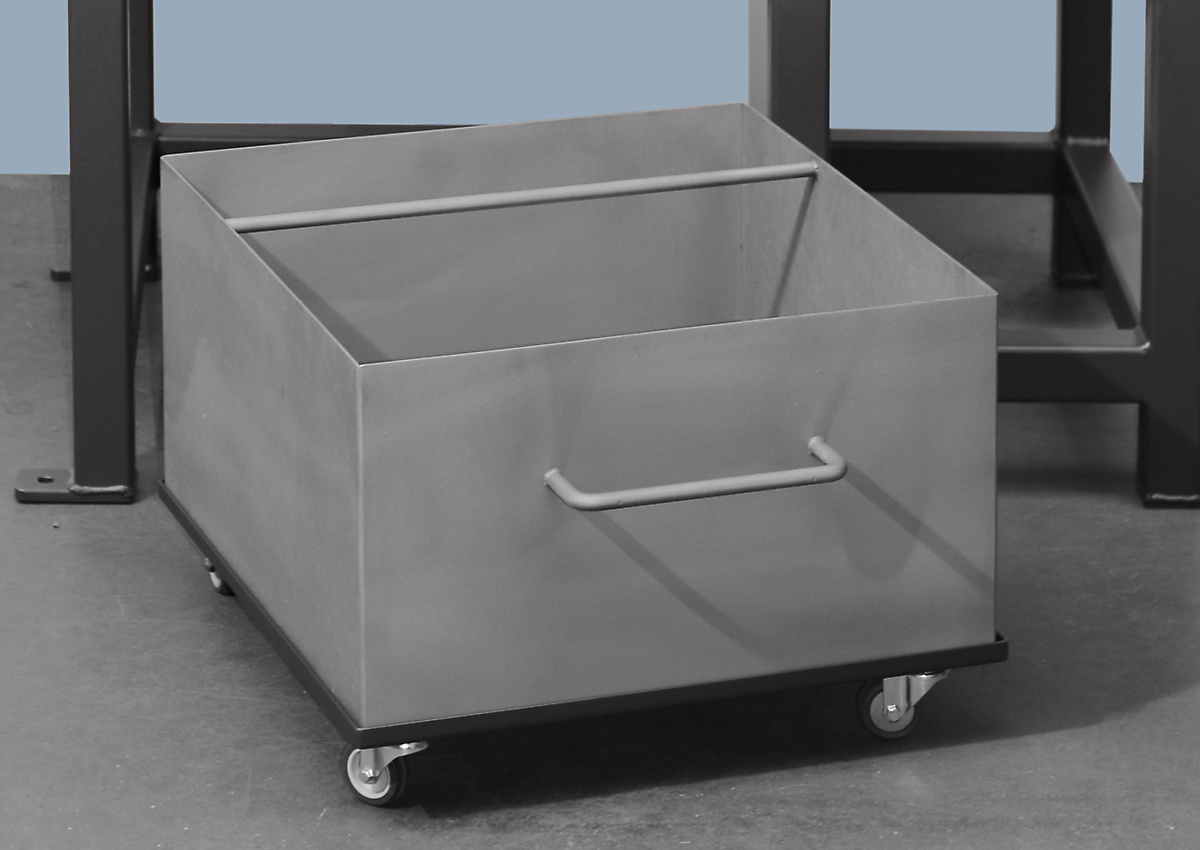

Extraction of 1 sample for continuous processing with reject
Hopper design ensures easy flow control and cleaning
Inspection window with light facilitates monitoring of sample division process
Vibratory feeder with push-fit feed chute for easy cleaning
Removable base frame allows for variable operation height

회전 시료 분배기 PT 300 기술 데이터

응용 분야	샘플링, 시료 분할, 시료 축분
응용분야	건축자재, 기술적/전기적, 농산물, 생물학, 식품, 유리 제품/ 세라믹, 의학/제약, 지질학 / 금속 공학, 화학/플라스틱 공학, 환경 / 재활용
투입 시료	대용량
투입시료 크기*	<= 30 mm
로터리 속도	18 - 53 min-1
투입구 용량	depending on configuration: up to 30 l / 60 l
분할 수	30 l configuration: batch processing: 6 / 8 / 10 (depending on dividing module) processing with reject: 1 60l configuration: batch processing: 4 / 6 / 8 / 10 (depending on dividing module) processing with reject: 1
시간 설정	디지털
배출량	70 l
Volume of segments for batch wise operation	30 l configuration: 3,000 ml / 3,750 ml / 5,000 / 7,500 ml (depending on dividing module) 60 l configuration: 6,000 ml / 7,500 m l / 10,000 / 15,000 ml (depending on dividing module)
진동 투입기 조절	디지털
전원 공급 데이터	100-120 V, 50/60 Hz; 200-240 V, 50/60Hz
전원 연결	단상
소비 전력	500 VA
폭 x 높이 x 깊이	30 l configuration: 1180 x1510 x 750 mm 60 l configuration: 1180 x1620 x 750 mm
중량	30 l configuration: ~ 209 kg (incl. vibratory feeder) 60 l configuration: ~ 230 kg (incl. vibratory feeder)
표준	CE

*투입 재료와 장비 환경, 설정에 따라

회전 시료 분배기 PT 300 작동 원리

The sample is fed as a continuous stream at a controlled rate via the chute. Either one part sample is extracted or the stream is divided into equal segments by the action of a “circle” of segmental buckets rotating beneath it. The unit operates in accordance with internationally recognized sampling protocols and divides samples in a representative and reproducible way.

Two modules in one machine allow for both batch-processing and continuous sampling with reject. Due to a range of various segment size combinations a variety of volumes can be divided (no additional machine needed).

_{기술적 변경 및 오차가 있을 수 있습니다}
