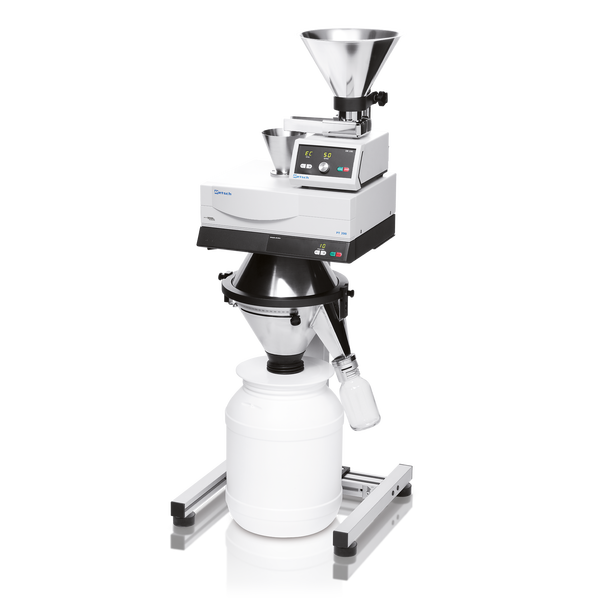

PT 200 drive unit incl. 10 sample bottles 500 ml and collecting receptacle 26 litres (please order vibratory feeder, feeding kit and bottom cone separately)
The maximum dividing ratio depends on the maximum slot width which can be set on the bottom cone. This differs between the three bottom cones which are available.
The smallest dividing ratio depends upon the maximum particle size of the sample since the slot width should be at least 3 times wider than the maximum particle size. This means that smaller fractions can be taken from smaller particle sizes.
The slot width “X” to be set can be calculated from the ratio of the required fractional amount “QT” to the initial sample amount “QA” multiplied by the fixed pitch circumference “U” of the bottom cone (U = 795 mm for all bottom cones).
X = (QT/QA) x U
Example:
A representative sample of 200 ml is to be taken from an initial sample amount
of 5000 ml (dividing ratio 1:25). X = (200 ml / 5000 ml) x 795 mm = 32 mm. This means that the slot width must be set to 32 mm.
Please note: The sample amount should be sufficiently large to represent the initial amount.
42.787.0010

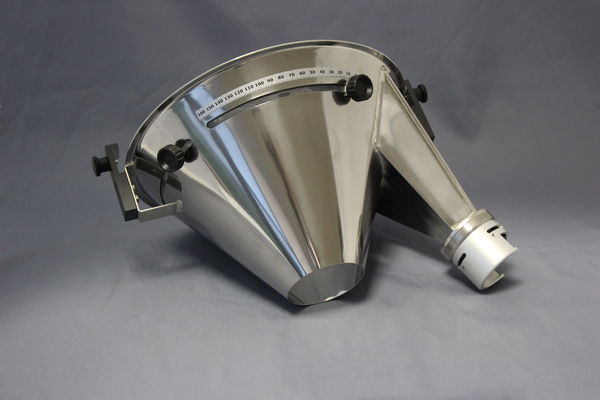

바텀 콘, 퀵 릴리즈 시료 배출구 1 개, GL 55 나사 산 방식, 슬롯 촉 159 mm, 조절 가능 분배비 최대 1 : 5
42.787.0011

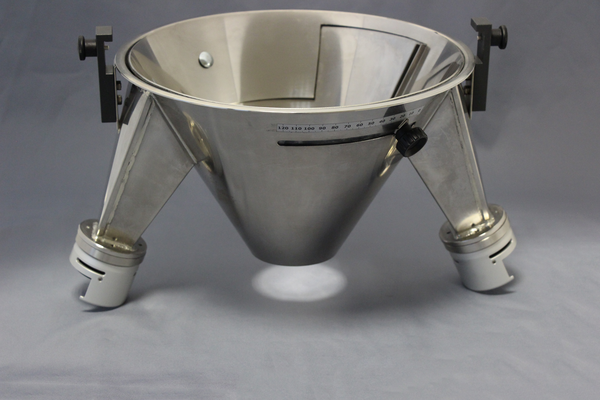

바텀 콘, 퀵 릴리즈 시료 배출구 2 개, GL 55 나사 산 방식, 슬롯 촉 110 mm, 조절 가능 분배비 최대 1 : 7.2
42.787.0012
바텀 콘, 퀵 릴리즈 시료 배출구 3 개, GL 55 나사 산 방식, 슬롯 촉 53 mm, 조절 가능 분배비 최대 3 x 1 : 15
22.003.0013

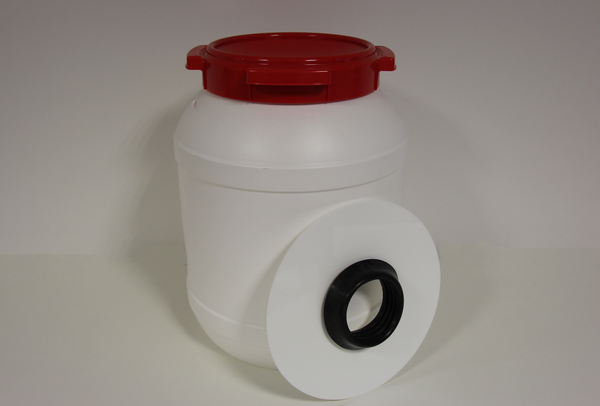

26 리터 회수 용기, 플라스틱
22.523.0001

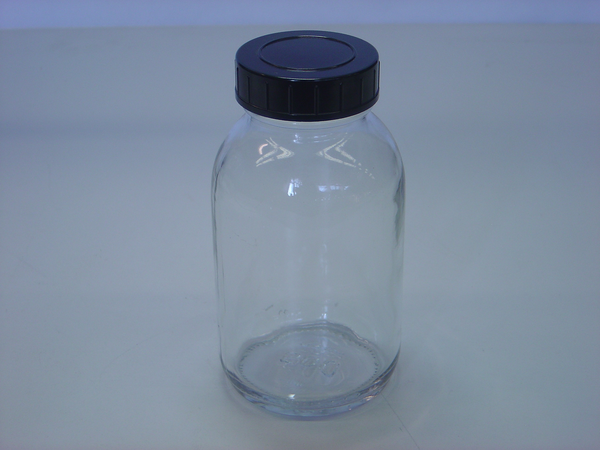

시료 병, GL 55 나사산 방식, 250 ml, 10 개
22.523.0002

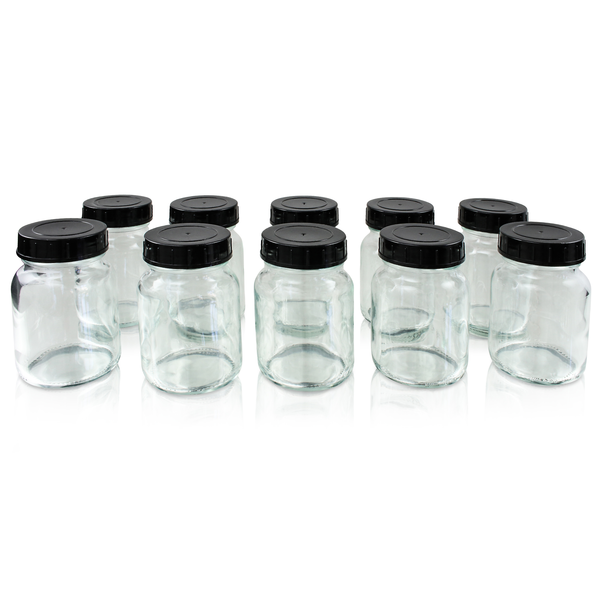

시료 병, GL 55 나사산 방식, 500 ml, 10 개
PT 200 액세서리
99.200.0022
PT 200 IQ / OQ 문서
Vibratory Feeder DR 100 PT 200
DR 100 구동 본체 (투입 키트를 별도로 주문하시기 바랍니다.)
70.938.0001
DR 100 구동 본체
220–240 V, 50 Hz
70.938.0002
DR 100 구동 본체
110–120 V, 60 Hz
72.020.0022
Feeding kit DR 100/3.5 litres for PT 200, incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 3.5 litres, fixture for hopper and data cable
72.020.0023
Feeding kit DR 100/22 litres for PT 200, incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 22 litres, fixture for hopper and data cable
